Toshiba 52HM84 52-inch DLP Television

Toshiba 52HM84 52-inch DLP Television

The Toshiba 52HM84 52-inch DLP Television features a proprietary Digital Light Engine named TALEN (Toshiba Advanced Light Engine) designed and manufactured by Toshiba. This new system utilizes Texas Instruments’ new step-up HD2+ chip to provide high resolution with enhanced brightness and contrast. At less than 16 inches deep, the 52HM84 has a flat panel like appearance and occupies considerably less space than traditional rear projection sets. The Toshiba 52HM84 also incorporates the new Toshiba PixelPure Digital Video Processing Suite. Utilizing Toshiba’s advanced circuitry, PixelPure delivers the consistent high-quality picture expected from Toshiba TVs.

The 52HM84 employs new Toshiba TheaterFine^TM DFP Screen technology with a Digital Fine Pitch and Anti-Glare Coating that results in incredible detail and noticeably deeper blacks. New Radiance^TM DC Lamp technology features high brightness and lower power modes (for extended life), and a unique Instant Restart feature that allows the sets to restart instantly after power down. This Toshiba DLP TV also features many of the key technologies that the company has been known for, including: CableClear^TM DNR+, SRS^® WOW, HD Window^TM POP, and now an HDMI^TM digital input.

Toshiba 52HM84 Key Features

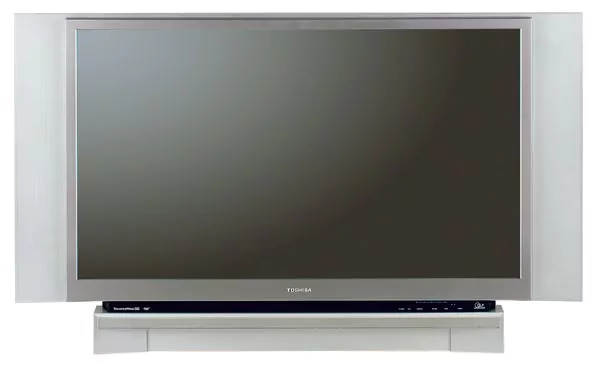

Toshiba 52HM84 pictured above with optional TV stand ST5284, sold separately.

52-inch Diagonal Screen Size*

TALEN^TM (Toshiba Advanced Light Engine) DLP Engine

The technology at the center of these sets is a proprietary Digital Light Engine named TALEN (Toshiba Advanced Light Engine) designed and manufactured by Toshiba. This new system utilizes Texas Instruments’ new step-up HD2+ chip to provide high resolution with enhanced brightness and contrast. At less than 16 inches deep, these sets have a flat panel like appearance and occupy considerably less space than traditional rear projection sets.

Step-up HD2+ DLP^TM Chip

HD2+ DLP^TM technology takes advantage of a new manufacturing process which enables projectors that feature it to deliver even higher contrast ratios. It also features dark video enhancement (DVE) made possible by changes to the color wheel to give even better video performance in dark scenes. At the same time, HD2+ delivers higher brightness and true blacks and whites.

Larger .8″ Chip for Increased Brightness

Full 1280 x 720 Mirrors for Enhanced Sharpness

Filled-in Mirror Vias for Increased Contrast

Toshiba PixelPure^TM Proprietary Digital Video Processing

Another development from Toshiba is the incorporation of the new PixelPure Digital Video Processing Suite. Key PixelPure components include:

• 6.2 Million Pixel Over Sampling — for Higher Perceived Resolution with Decreased Image Distortion
• Real Speed Progressive Scanning — uses Additional Sampling Points to Create Smoother Diagonal Lines
• Magic Square Algorithm — for Smooth and Natural Color Gradation
• Dynamic Contrast Enhancer — for Higher Perceived Contrast and Increased Color Saturation and Purity
• Super Real Transient and Small Signal Sharpness — for Sharp Transitions from Dark to Bright
• Color Transient Improver — for Sharp Transitions on Color Changes Without Bleeding
• Color Detail Enhancer — to Maintain Fine Image Detail in Color Saturated Areas

Double-Speed 9-Bit System with Enhanced Algorithms for Video Noise Elimination

Radiance^TM High-Output 120 Watt DC Lamp

Instant Restart Feature

The lamp has a unique Instant Restart feature, allowing the TV to be turned on immediately after shutdown, unlike other lamp based TVs.

High Brightness (Day)/Low Power (Night) Lamp Modes

The lamp features a 120-Watt High Brightness mode for daytime use with ambient room light and 100-Watt mode for nighttime in a dark room, which also extends the lamp life.

TheaterFine^TM DFP (Digital Fine Pitch) Screen with Anti-Glare Coating

TheaterFine^TM DFP Screen technology helps create crisp HD resolution with its super fine pitch screen. It also has an Anti-Glare Coating to reduce unwanted reflections from ambient room light, which helps increase contrast for deeper blacks.

First Surface Mirror

HDMI^TM Digital Input

HDMI (High-Definition Multimedia Interface) is the first industry-supported, uncompressed, all-digital audio/video connection. HDMI^TM provides the best interface between a digital television and compatible products, such as a DVD player.

CableClear^TM DNR+ (By Input)

CableClear^TM Digital Noise Reduction reduces visible interference in your TV picture.

HD Dynamic Contrast

The HD Dynamic Contrast feature continually analyzes picture information and enhances those parts of the picture with the most detailed information.

3DYC (4-MB, 10 Bit) Digital Comb Filter with Vertical Contour Correction

In addition to separating the Y (black and white) and C (color) elements of a video signal, a 3D Y/C filter performs two additional key functions.

4-Item Illuminated Universal Remote Control with DVD Control

Your TV remote control can operate your TV and many cable converter boxes, satellite receivers, VCRs, DVD players, and HTIBs (home theater in a box), even if they are different brands.

Color Temperature Control (Warm/Medium/Cool)

You can change the quality of the picture by selecting from three preset color temperatures: cool, medium, and warm.

Black Level Expander

This capability allows viewers to set the reference black threshold cutoff to either Normal or Enhanced.

Picture Modes

You can select your desired picture type from four picture modes: Sports, Standard, Movie, and Preference.

Auto Aspect Detection

When the AUTO ASPECT feature is set to ON and the TV receives a 480i signal, the picture size is automatically selected.

Five TheaterWide^® Modes

You can view 480i, 480p and 1080i format programs in a variety of picture sizes.

Cinema Mode (Film/Video)

When you view a DVD movie (3:2 pulldown processed) from a DVD player connected to the ColorStream (component video) inputs on the TV, smoother and more natural motion can be obtained by setting the CINEMA MODE to FILM.

SRS^® WOW Audio (3D, Tru-Bass, Focus)

SRS^® WOW is a state-of-the-art technology from SRS Labs that dramatically improves the quality, dynamics, image field size, and bass tones.

StableSound^®

When the signal source is changed, the StableSound feature limits the highest volume level to prevent extreme changes in volume.

MTS Stereo/SAP with dbx^®

The multi-channel TV sound (MTS) feature allows you to listen to high-fidelity stereo sound while watching TV.

Separate Woofers and Tweeters

40W Total Audio Power

HD Window^TM POP with Split Screen and 12 MultiWindows

The POP (picture-out-picture) feature splits the screen into a double window that allows you to watch two programs at the same time.

Tri-Lingual Color Icon On-Screen Display

You can choose from three different languages (English, French, and Spanish) for the on-screen display of adjustment menus and messages.

Off/Sleep Timer

You can set the ON timer to turn the TV on automatically. You can also set the SLEEP timer to turn the TV off automatically.

Closed Captioning on Mute

The closed caption feature has two options: Captions and Text.

V-Chip

The V-CHIP control feature in this TV detects signals and blocks the programs according to your selections.

Channel Return

The Channel Return feature allows you to switch between two channels without entering an actual channel number each time.

Power Return

Noise Muting

Favorite Channel

You can preset up to 12 of your favorite channels using the Favorite Channel Programming feature.

Channel Lock

With the CH LOCK feature, you can lock specific channels.

Channel Labeling

Channel labels appear above the on-screen channel number display each time you turn on the TV.

Video Lock

With the VIDEO LOCK feature, you can lock out the input sources.

Direct Video Input Selection

Press the TV/VIDEO on the remote control or the TV to view a signal from another device connected to your TV.

Video Labeling

The video label feature allows you to label each input source for your TV from a preset list of labels.

Individual A/V Settings by Input Type

For optimum display of each type of input source, Individual AV Settings by Input allow the viewer to make video adjustments for each type of input.

Discrete IR Codes

PIP Sound

With the use of optional wireless headphones or an A/V Receiver, two people can watch – and hear – different programs simultaneously.

2-Level Mute

SurfLock^TM

The SurfLock^TM feature temporarily ‘memorizes’ one channel in the CH RTN button, so you can return to that channel quickly from any other channel by pressing CH RTN.

Thin Depth/Low Profile Tabletop Cabinet

Toshiba 52HM84 52-inch DLP Television

Toshiba 52HM84 Specifications

Diagonal Screen Size

52″

Screen Aspect Ratio

16:9

Screen Pixel Resolution

1280 x 720

Input Terminals

• RF Inputs – 2
• Rear A/V Input – 2
• Rear S-Video Input – 2
• ColorStream^® HD Component Video Inputs (Y, Pb, Pr) – 2
• Front Panel A/V Inputs – A/V/S
• HDMI^TM Digital Input – 1

Output Terminals

• Video Output – 1
• Audio Outputs – F + V

Color

Silver with Gray Bezel

Dimensions (W x H x D)

58-3/8″ x 35-1/16″ x 15-1/4″

Weight

85 lbs.
